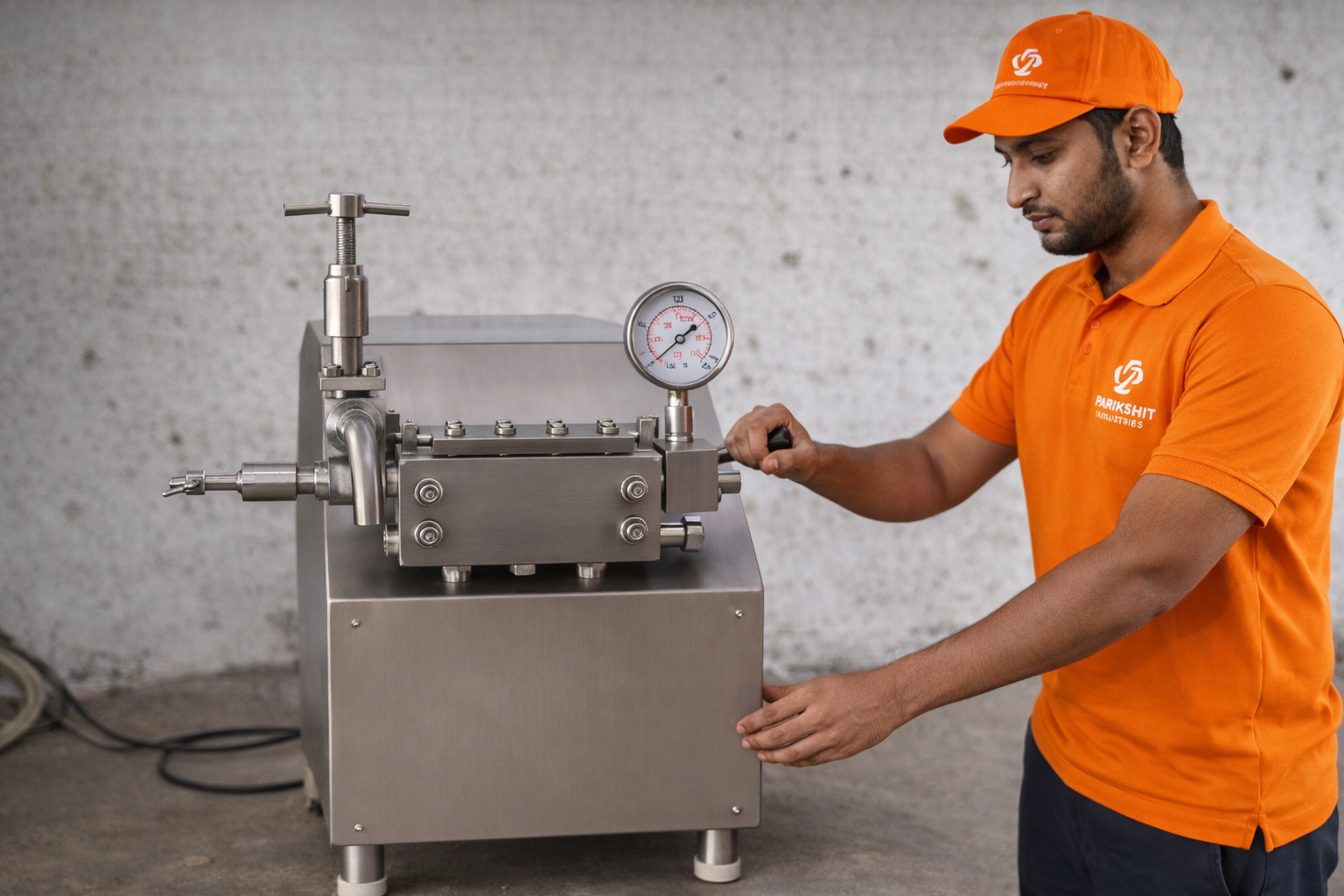

Homogenizer

Homogenizer Machine Is Used To Reduce The Particle Size Of The Milk For Making Ice Cream. If We Make Raw Milk Left To Stand The Fat Will Increase And Make A Cream Layer On Milk. The Homogenizer Passes The Milk With High Pressure Thorough Particle Surface Area. There Are Two Stages To Minimize Or Reduce The Milk Particle Though Piston Pump. The Pump Is Operated By Electric Motor. Milk Homogenizer Is Essential For Emulsifying One Liquid Into Another OR Uniformly Dispersing Solid Particles Throughout A Liquid To Improve Consistency, Stability, Shelf Life, Flavor And A Host Of Other Important Product Qualities Such As

Features • Dairy & Ice Cream Industry • Food & Beverage Industry

Features

  • Capacity: 200 / 300 / 500 / 1000 LPH
  • Covering panel made from stainless steel
  • Two stage homogenization
  • Manual pressure adjustment by hand wheel
  • S.S. diaphragm-type sanitary pressure gauge
  • High strength eccentric shaft & connecting rod assembly
  • Splash lubricating system
  • Design for CIP cleaning

Dairy & Ice Cream Industry

  • Better product stability
  • Smoothness of product
  • Avoids rise of the cream layer
  • Lower curd tension
  • Increase in viscosity
  • Enhances whiteness

Food & Beverage Industry

  • Upgrading appearance, colour & flavour
  • Avoiding ring formation
  • Improves emulsification properties
  • Stabilising pulp to desired consistency



Orange & White Responsive Table (No Animations)
Technical Specification Data
Model Specification Table
Model 200 300 500 1000
Capacity, l/hr* 200 300 500 1000
Motor (H.P) 3 3 5 10
Max working pressure (PSI) 2500 2500 3000 3500
No. of piston 3 3 3 3
Operation Manual Manual Manual Manual
